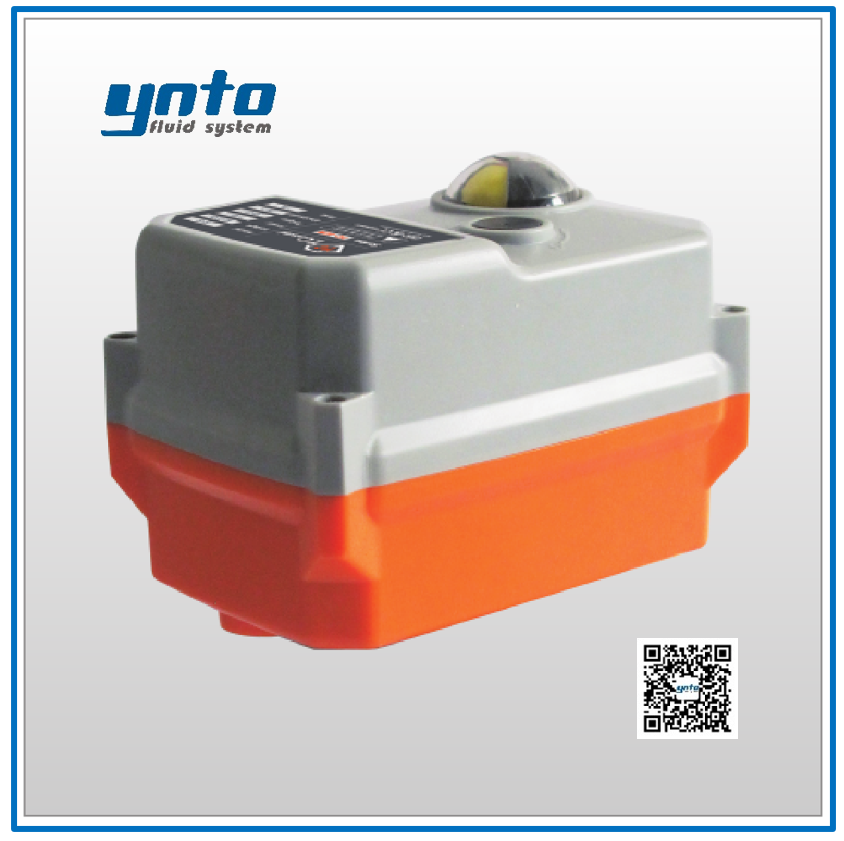

YT-02系例電動執行器
YT-02系例電動執行器
YT-02 series
|
◎Mini volume,exquisite appearance (L104-W70-H90)
|
|
|
◎Rated torque:20Nm
|
|
|
◎Protection level:IP67
|
|
|
◎Mechanical connecter: ISO5211（F03、F04、F05）
|
|
|
◎Out put bearing:male square12x12,female square 8x8,11x11,14x14
|
|
|
◎High performance brushless motor,it can be used up to 20000 times
|
|
|
※YT series is all for plastic housing: ABS /PC+PET
YT series is all for die casting aluminium outer case finished:passivation and plastic spraying |
|
|
|
| Product model | Rated voltage | time | Additional function | Operating characteristics | note |
|
YT-02N
normal on/off actuator
|
DC12/24V | 10S@DC series | Continuous operation |
passive contact feedback
feedback asynchronous with arrival
|
|
| AC24/110/220V | 15S@AC series | HTR (anti condensation heater) | Discontinuous operation of ED=75% | ||
| AC/DC24V | 10S | KT329(failsafe) | Continuous operation | ||
| AC/DC95-265V | HTR (anti condensation heater) | ||||
|
YT-02C
intelligent on/off actuator
|
DC12V AC/DC24V AC/DC95-265V |
10S |
KT32(failsafe)
A(output fault signal)
HTR(anti condensing heater)
|
Continuous operation |
Synchronization of feedback signal with actual location
With PUL speed regulation and PWM speed regulation
0.9/1.3 inch OLED LCD screen
Can be achieved: two or three, four position mode
|
|
YT-02T
intelligent modulating actuator
|
DC12V AC/DC24V AC/DC95-265V |
10S |
KT32(failsafe)
A(out put fault signal)
HTR(anti condensing heater)
|
Continuous operation |
0.9/1.3 inch OLED LCD screen
Control feedback mode:
4-20mA/0-20mA/0-10mA
0-5V/1-5V/0-10V/2-10V
|
|
YT-02B
intelligent bus actuator
|
DC12V DC24V AC95-265V(Not recommended) |
10S |
KT32(failsafe)
HTR(anti condensing heater)
|
Continuous operation |
RS485，CANBus2.0 Profibus
with0.9/1.3寸OLEDscreen
on/off actuator with PUL speed regulation and PWM speed regulation
bus on/off actuator（ON、OFF、B33）
bus modulating actuator，adjustment accuracy5‰
|
| YT-02D intelligent timer actuator |
DC12V AC/DC24V AC/DC95-265V |
10S |
KT32(failsafe)
HTR(anti condensing heater)
|
Continuous operation |
with0.9/1.3寸OLEDscreen
have rechargeable battery
can stay more than 60days after power off
Pulse timing mode、moment timing mode
cycle by day,cycle by week
|
|
YT-02R
intelligent wireless actuator
|
DC12V AC/DC24V AC/DC95-265V |
10S |
KT32(fail safe)
HTR(anti condensing heater)
|
Continuous operation |
wireless on/off actuator（ON、OFF）
with0.9/1.3 OLEDscreen wireless modulating actuator，adjustment accuracy5‰ communicate frequency：433/868/915MHZ LORA/FSK : max2.5KM(open land) ENOCEN: 20-100m |
Dimension
Main parts
|
|
Install the actuator and valve
|
|
Matched valve technical requirements
- 1．When installing ball valve, the max torque ≤15Nm. If the ball valve is out of operation for a long time, and the torque value of first on or off is the max torque. Or you can choose ball valve with elastic sealing.
- 2. When installing butterfly valve, the max torque≤13Nm. Because the torque value will increased by 10-20% after installing.
- 3．When installing direct mount mode valve, the hole deep ≤15mm. It requires cutting if the output shaft is longer than 15mm.
- 4. Please pay attention to the following items if you install the bracket and coupling by yourself:
- ※ The intensity of bracket should meet the using requirements: the bracket twisting extent ≤0.2mm in the process of on or off.
- ※ The parallelism of bracket ≤0.5mm.
- ※ When processing the shaft hole at both end of the coupling, it is necessary to ensure the accuracy and concentricity. The purpose is to make sure the mechanical hysteresis ≤10°, otherwise it will cause the actuator unable to work.
- 5. Screw should be installed spring washer、flat washer, and we suggest you daub some glue cement around the screw in case of screw loosening.
-
6. After installation, user should switch the valve on and off one time with handle device first. Modifying the valve after make sure it works well
Work environment
- □ This product can be used indoor and outdoor.
- □ This product is not explosion proof, do not use them in flammable and explosive environment.
- □ You need to install protective device for the actuator if it is exposed to the rain or sunshine.
- □ Please pay attention to the ambient temp.
- □ When installing, you need to consider the reserved space for wiring and repairing.
- □ When power on, it is not allowed to dismantle actuator and valve.
- □ When power on, it is not allowed to do wiring.
- □ ※Forbid dropped things hit the device and lead to improper operation.
- □ ※Forbid to step on it which will cause device malfunction or personal accident.
- □ ※It is forbidden to do wiring project in rainy day or when there is water splash.
-
□ 02 series is forbid to open the case for wiring,or it will damaged the Sealing performance
Safety notice
- □ In order to use the device safely for a long time,please pre-read the manual carefully to ensure correct use.
- □ Notice item:Please understand the product specification and using method clearly to ensure personal safety or prevent device
- □ In order to indicate damage and danger,here we classify them as “warning ” and “notice ※ ”.
- □ Both of contents are very important,which should be obeyed strictly.
- □ “Warning ”:It will cause death or serious injury if not obeyed.
- □ “Notice ※ ”:It will cause slight injury or device damage if not obeyed.
